Qa1 Cfl7s Female Rod End, Lh, 7/16 In Bore, 7/16″-20
USD 6.79 USD
Specifications
| Brand | QA1 |
| Model | CFL7S |
| MPN | CFL7S |
| Style | Rod End |
| Item | Rod End |
| Thread Size | 7/16-20" |
| Type | Rod End |
| Weight | 0.2500 |
| Length | 3.000 |
| Width | 2.500 |
| Depth | 2.500 |
| Housing | Carbon Steel |

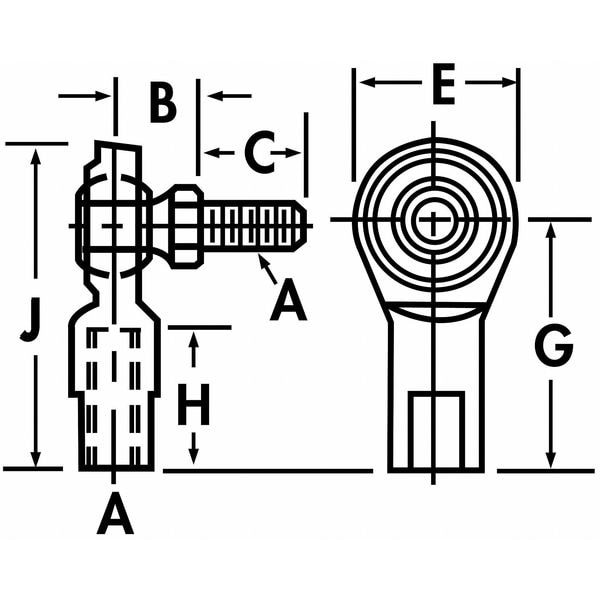

| Dimension A | 7/16-20" |
| Dimension B | 0.688" |
| Dimension H | 0.937" |
| Dimension C | 1.062" |
| Dimension E | 1.125" |
| Dimension G | 1.812" |
| Dimension J | 2.375" |
| Max. Angular Misalignment | 21 Degrees |
| Thread | Left Hand |
| Ball | 52100 Steel Spherical |
| Static Radial Load | 7897 lb. |
| Stud Length | 1.062" |
