Qa1 Cmr10 Spherical Rod End, Male Plain, 5/8 In Bore Dia, Right Hand Thread,
USD 10.59 USD
Specifications
| Brand | QA1 |
| Model | CMR10 |
| MPN | CMR10 |
| Style | Rod End |
| Item | Rod End |
| Thread Size | 5/8-18" |
| Type | Rod End |
| Weight | 0.3500 |
| Length | 6.000 |
| Width | 4.000 |
| Depth | 4.000 |
| Inside Dia. | 0.625/0.627" |
| Housing | Carbon Steel |

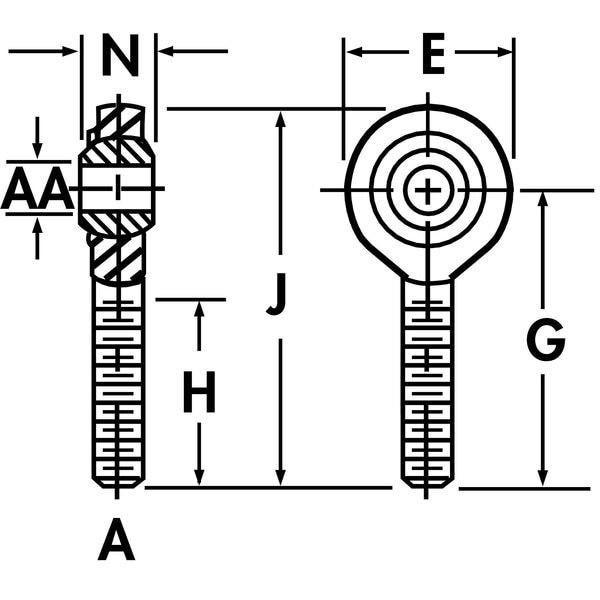

| Dimension A | 5/8-18" |
| Dimension H | 1.625" |
| Dimension E | 1.500" |
| Dimension G | 2.625" |
| Dimension J | 3.375" |
| Dimension N | 0.750" |
| Max. Angular Misalignment | 26 Degrees |
| Thread | Right Hand |
| Ball | 52100 Steel Spherical |
| Dimension AA | 0.625/0.627" |
| Static Radial Load | 11,385 lb. |
What stands out about this tool is how the double ended build saves space in your kit.
