Qa1 Cmr8 Spherical Rod End, Male Plain, 1/2 In Bore Dia, Right Hand Thread,
USD 7.95 USD
Specifications
| Brand | QA1 |
| Model | CMR8 |
| MPN | CMR8 |
| Style | Rod End |
| Item | Rod End |
| Thread Size | 1/2-20" |
| Type | Rod End |
| Weight | 0.2000 |
| Length | 6.000 |
| Width | 4.000 |
| Depth | 4.000 |
| Inside Dia. | 0.500/0.502" |
| Housing | Carbon Steel |

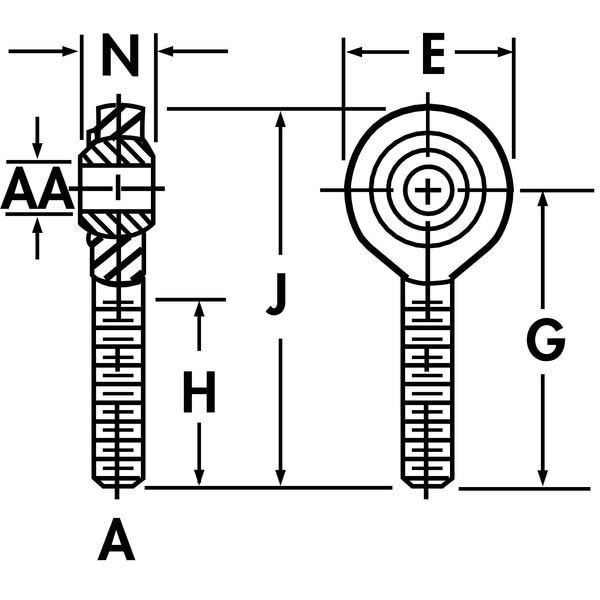

| Dimension A | 1/2-20" |
| Dimension H | 1.500" |
| Dimension E | 1.312" |
| Dimension G | 2.438" |
| Dimension J | 3.094" |
| Dimension N | 0.625" |
| Max. Angular Misalignment | 20 Degrees |
| Thread | Right Hand |
| Ball | 52100 Steel Spherical |
| Dimension AA | 0.500/0.502" |
| Static Radial Load | 10,046 lb. |
A nice touch with the ULTRA2 is the soft-close lid that prevents slamming.
Related Items
RULAND PCR12-4-2.5-SS Coupling, 4 Beam Clamp, 1/4in.x 5/32in.
Dmi 502-1305-0600 Cane, Silver, 31 To 40 In. H, 250 Lb. Cap.

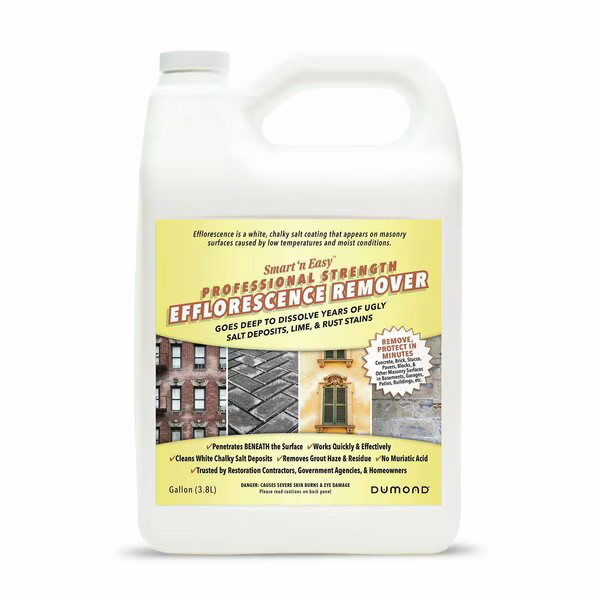

Dumond 910 Smart ‘n Easy Efflorescence Remover, 1 Gal.
Sta-Kon Ra18-10F Fork Terminal, 16 Awg, 600 V, Nylon Insulated, 100ea

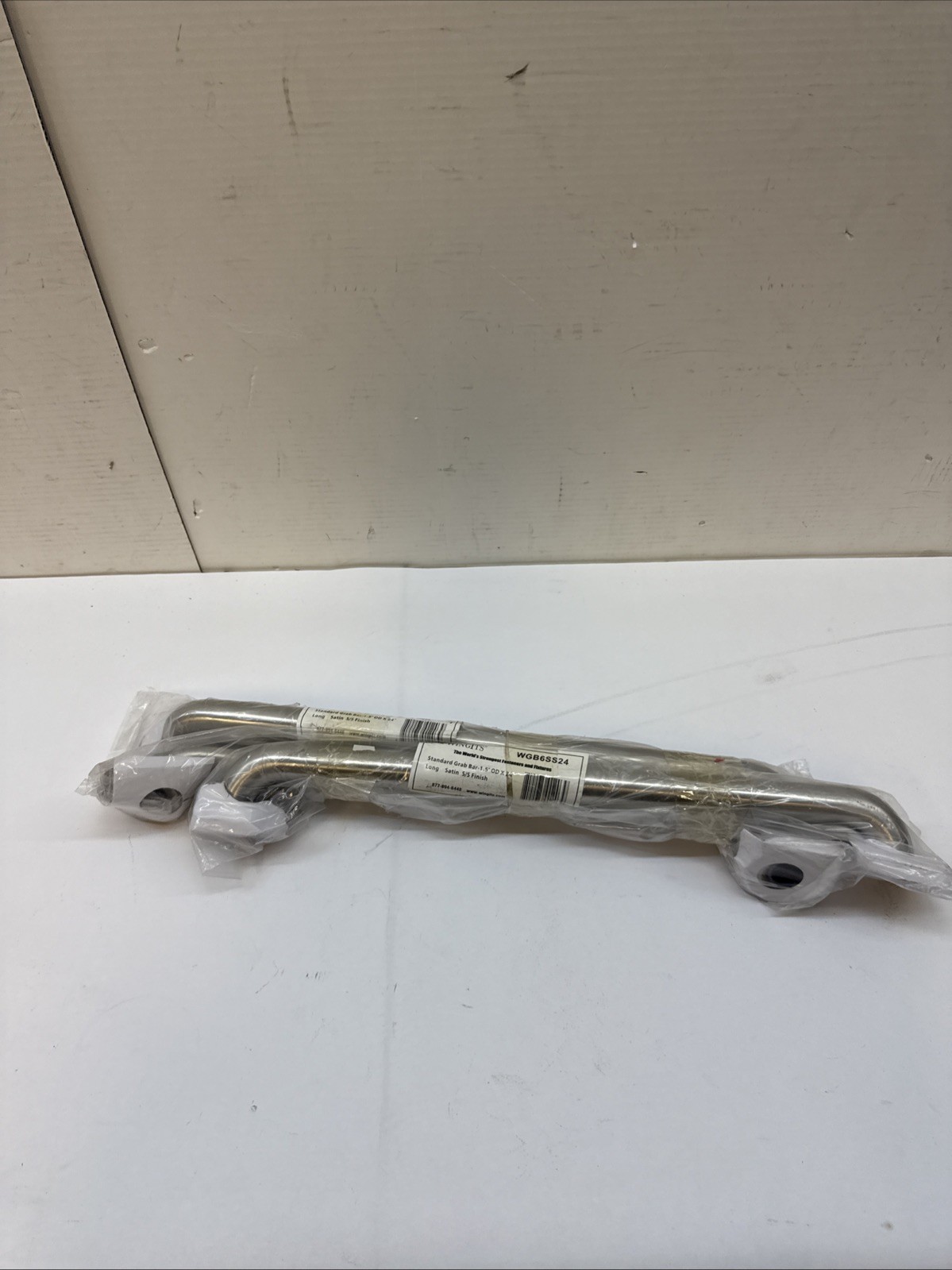

Wingits Wgb6ss24 Wall Mounted Ada Compliant Grab Bar, 24 In L, 1-1/2 In 3PK
