Qa1 Nmr4 Male Rod End, Nylon/Ptfe, Rh, 1/4-28
USD 5.55 USD
Specifications
| Brand | QA1 |
| Model | NMR4 |
| MPN | NMR4 |
| Style | Nylon/PTFE Race Rod End |
| Item | Nylon/PTFE Race Rod End |
| Thread Size | 1/4-28" |
| Type | Nylon/PTFE Race Rod End |
| Weight | 0.0100 |
| Length | 1.700 |
| Width | 0.800 |
| Depth | 0.800 |
| Inside Dia. | 0.250/0.252" |

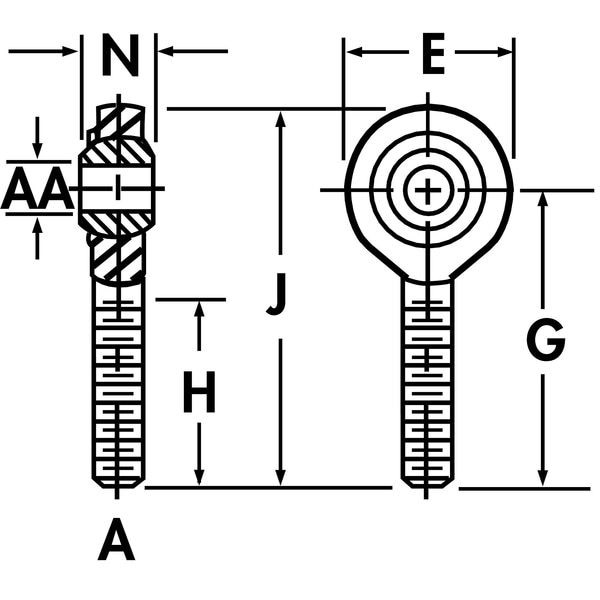

| Dimension E (In.) | 0.750 |
| Dimension G (In.) | 1.562 |
| Dimension H (In.) | 1.000 |
| Housing | Carbon Steel |
| Inside Dia. (In.) | 0.250/0.252 |
| Dimension A | 1/4-28" |
| Dimension H | 1.000" |
| Dimension E | 0.750" |
| Dimension G | 1.562" |
| Dimension J | 1.937" |
| Dimension N | 0.375" |
| Max. Angular Misalignment | 16 Degrees |
| Thread Size (In.) | #1/4-28 |
| Dimension J (In.) | 1.937 |
| Thread | Right Hand |
| Ball | 52100 Steel Spherical |
What stands out about WG1G Waxed Gelcoat is the way it seals porous surfaces.
Related Items
Onsrud 52-700 Routing End Mill, Up O Flute, 1/4, 1 1/4, 3

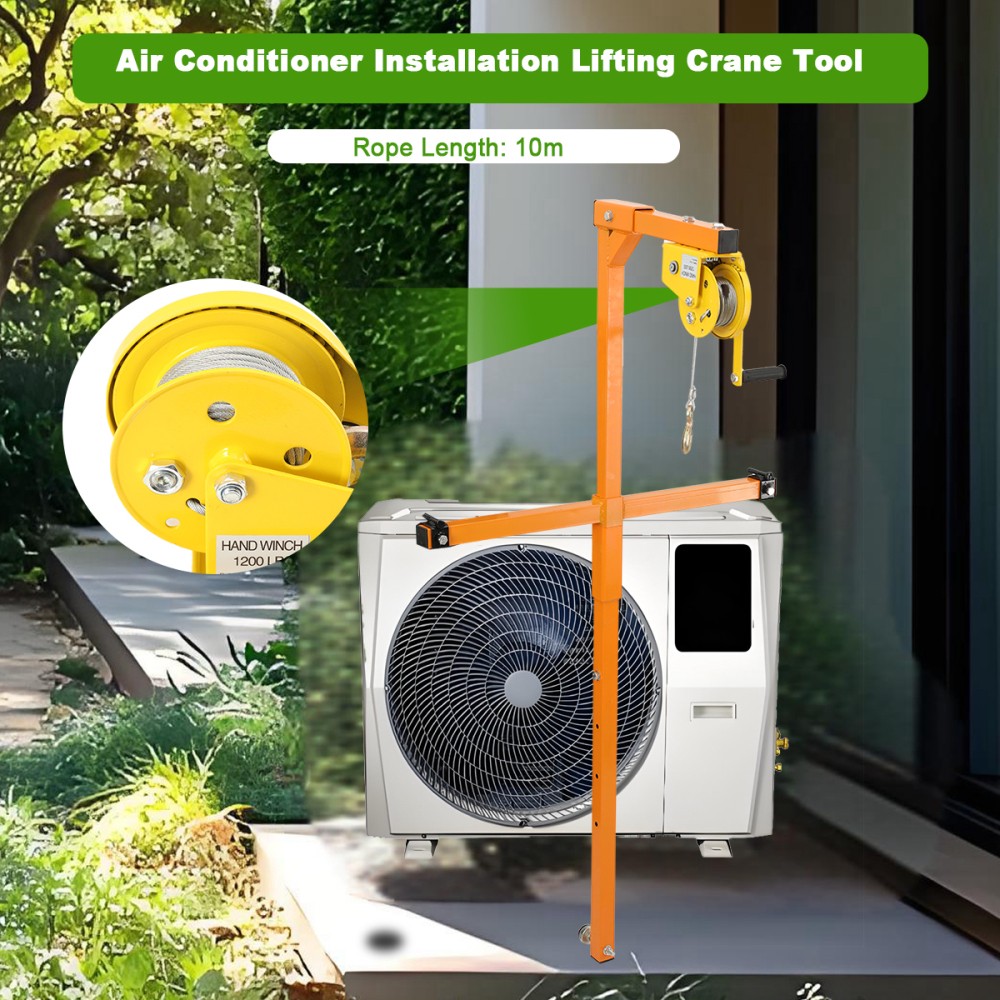

AC Air Conditioner Outside Installation lifting Tool 10M Bracket Crane Tool New
Zoro Select 60150 Oil Hard, Drill Rod, Steel, 1inx36in L
Westward Carbon Steel Die 1/4-28 UNF Threading Round Die 1-1/2 OD Tool With Case

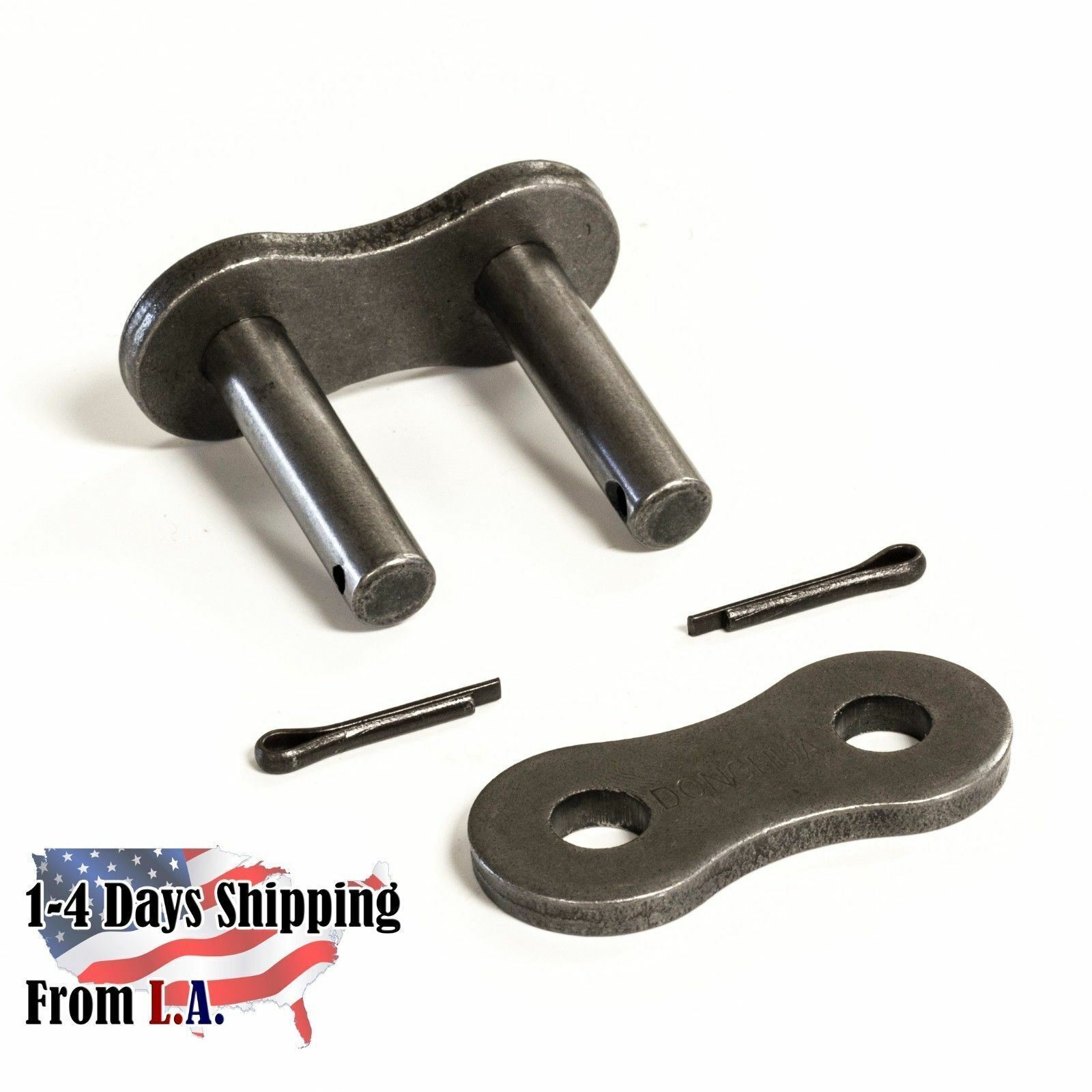

120 Standard Roller Chain Connecting Link (2PCS)
Sta-Kon A18-10F Fork Terminal, #10 Stud Size, 16 Awg, 600 V, Bare Insulated,

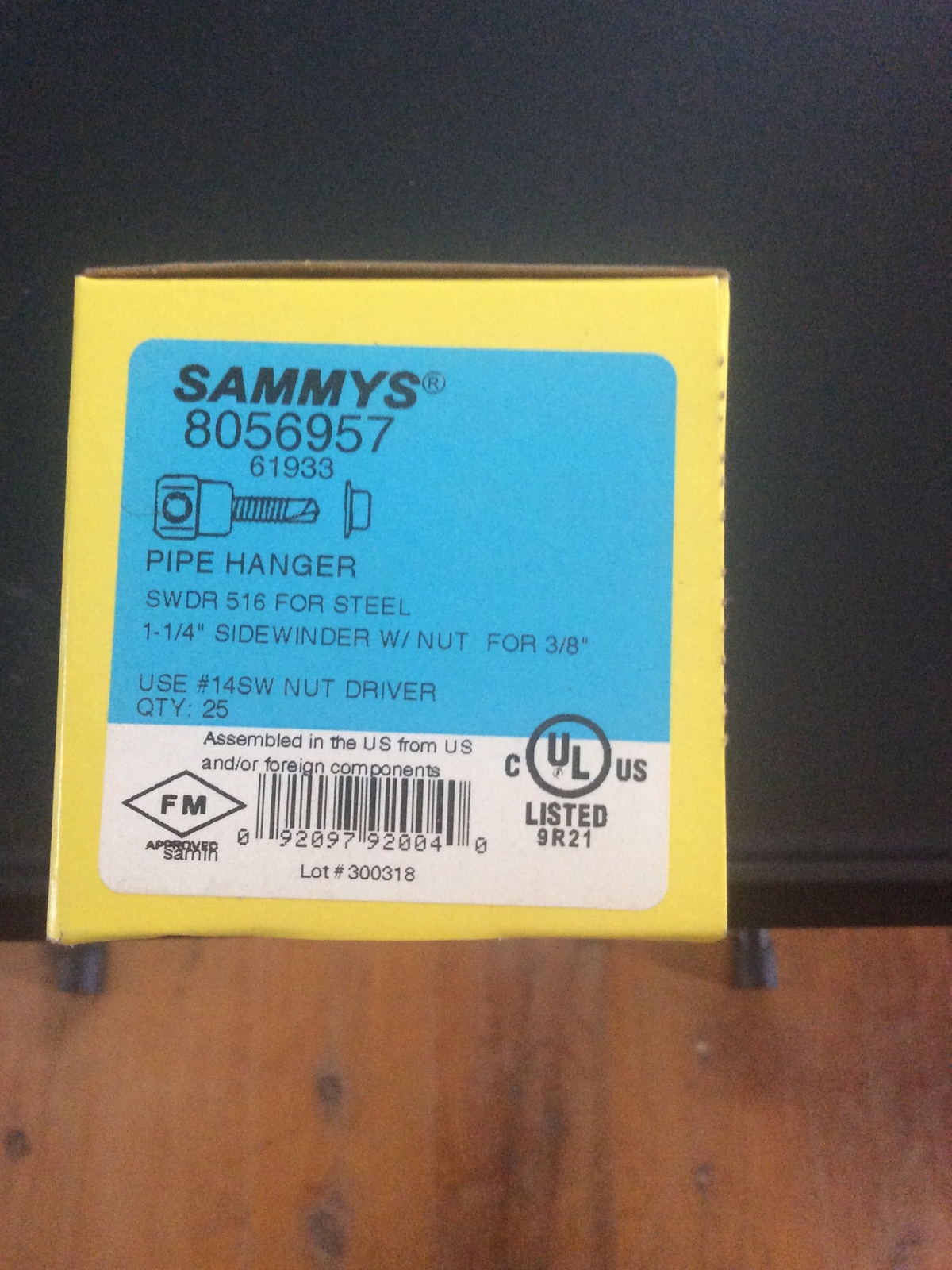

*(Box of 25) Sammys 8056957 3/8″ Horizontal Threaded Rod Anchor – SWDR 516

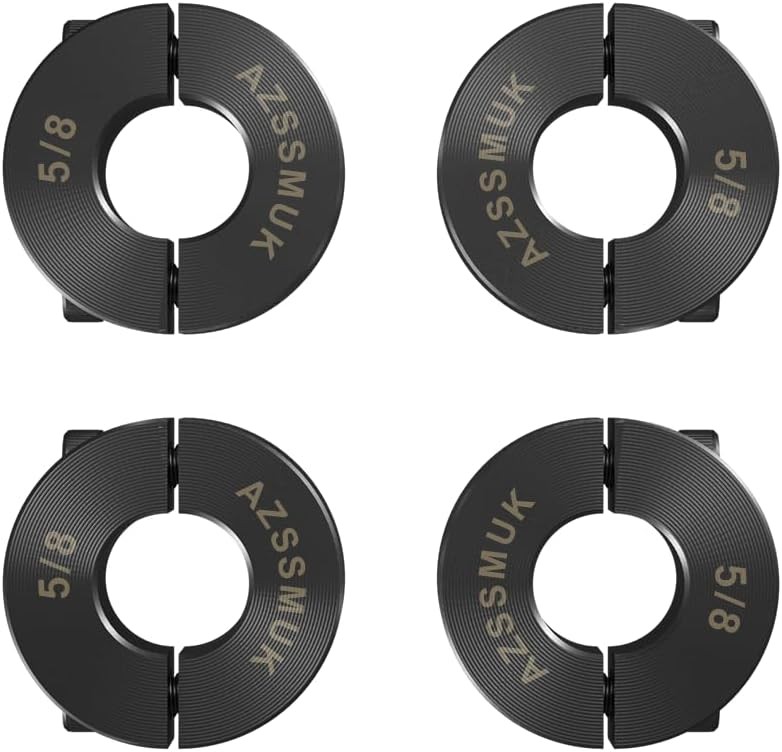

AZSSMUK 5/8″ Bore Double Split Clamp-On Shaft Collars of Carbon 5/8, Black
