Qa1 Nmr6 Male Rod End, Nylon/Ptfe, Rh, 3/8-24
USD 5.89 USD
Specifications
| Brand | QA1 |
| Model | NMR6 |
| MPN | NMR6 |
| Style | Nylon/PTFE Race Rod End |
| Item | Nylon/PTFE Race Rod End |
| Thread Size | 3/8-24" |
| Type | Nylon/PTFE Race Rod End |
| Weight | 0.1000 |
| Length | 6.000 |
| Width | 4.000 |
| Depth | 4.000 |
| Inside Dia. | 0.375/0.377" |
| Dimension G (In.) | 1.938 |
| Dimension H (In.) | 1.25 |
| Housing | Carbon Steel |
| Inside Dia. (In.) | 0.375/0.377 |

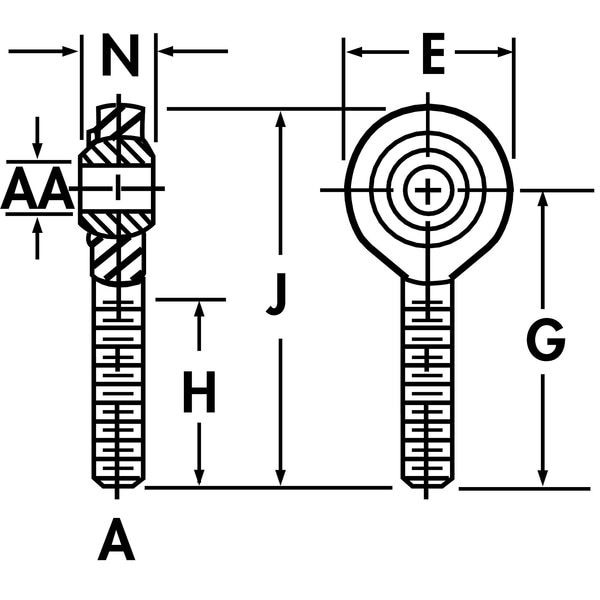

| Dimension A | 3/8-24" |
| Dimension H | 1.250" |
| Dimension E | 1.000" |
| Dimension G | 1.938" |
| Dimension J | 2.438" |
| Dimension N | 0.500" |
| Max. Angular Misalignment | 12 Degrees |
| Thread Size (In.) | #3/8-24 |
| Dimension J (In.) | 2.438 |
| Thread | Right Hand |
| Ball | 52100 Steel Spherical |
A nice touch from Industrial Service Solutions is the color-coded connection points.
