Ruland Bc21-10-5-A Coupling, Bellows Clamp, 5/8In.X 5/16In.
USD 132.99 USD
Specifications
| Brand | RULAND |
| Model | BC21-10-5-A |
| MPN | BC21-10-5-A |
| Size | BC21 |
| Material | Aluminum |
| Style | Bellows Clamp |
| Item | Motion Control Coupling |
| Type | Motion Control Coupling |
| Overall Length (In.) | 1.623 |
| Weight | 0.1800 |
| Length | 3.000 |
| Width | 1.500 |
| Depth | 1.500 |
| Max. RPM | 10,000 |
| Outside Dia. (In.) | 1.313 |
| Overall Length (mm) | 41.00 |
| Torque (In.-Lbs.) | 120 |
| Screw Type | Cap Screw |
| Bore Dia. | 5/8 x 5/16" |
| Length Through Bore (In.) | 0.811 |
| Max. Angular Misalignment | 1.5 Degrees |
| Outside Dia. (mm) | 33.3 |
| Clearance Dia. (In.) | 1.313 |
| Max. Temp. Range (F) | 200 Degrees |
| Clearance Dia. (mm) | 33.3 |
| Length Through Bore (mm) | 20.5 |
| Max. Axial Misalignment (In.) | +/-0.016 |
| Max. Parallel Misalignment (In.) | 0.006 |
| Max. Bore (In.) | 0.625 |
| UPC | 634529062722 |
What I like about Color Tree's is the straightforward assembly instructions.
Related Items

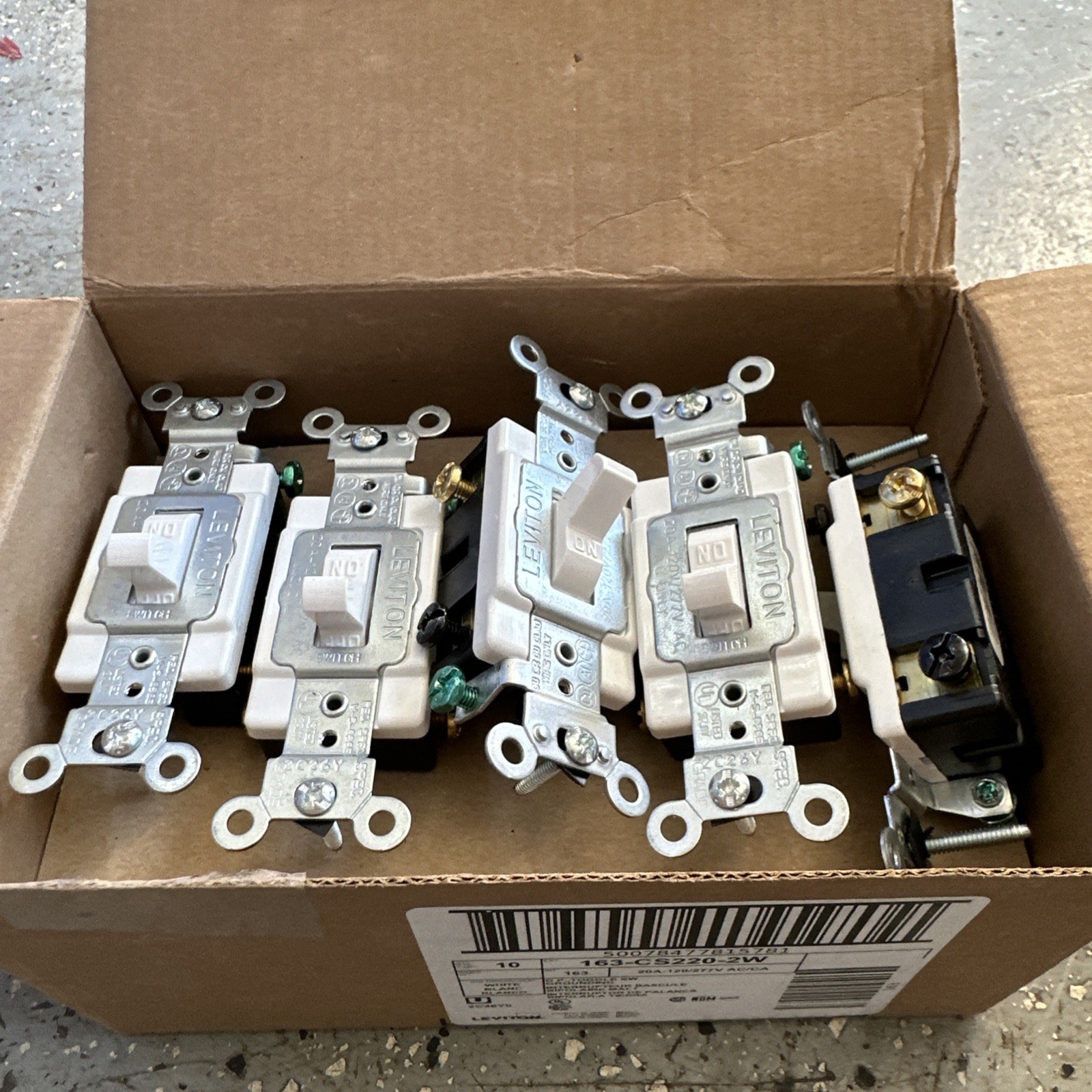

LEVITON CS220-2W TOGGLE SWITCH, DOUBLE POLE, AC QUIET, 20A, 120/277V, WHITE 10pc

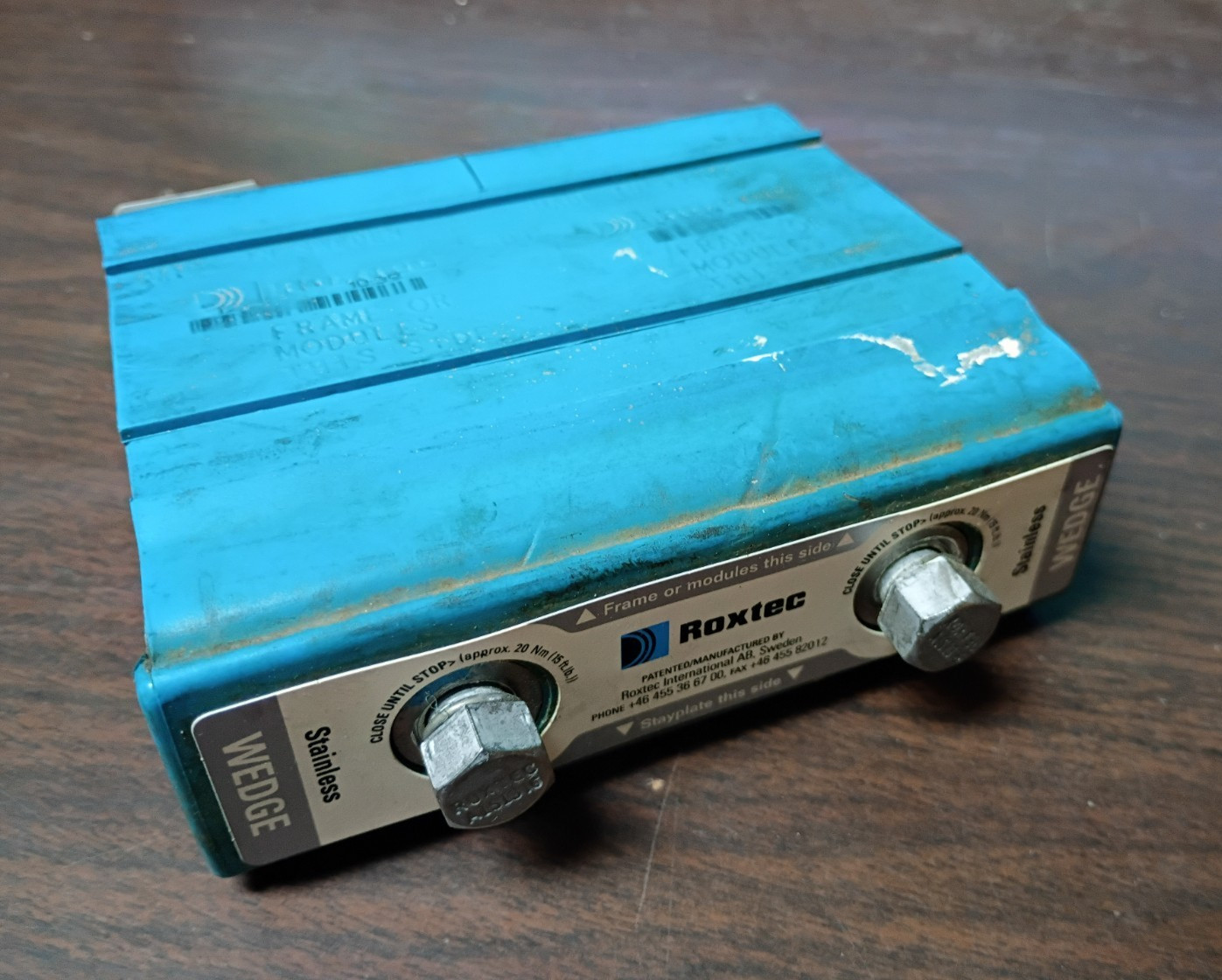

ROXTEC AISI316 WEDGE 120 120mm STAINLESS STEEL PRE-OWNED IN GOOD CONDITION
100W LED Canopy Gas Station Light 3000K/4000K/5000K Parking Garage Light 13500LM
RAZOR-BACK Aluminum Scoops, 17.75 X 14.5 Blade, 48 in White Ash Straight Handle
Ruland Fcmr25-11-6-A Coupling, 6 Beam Clamp, 11Mmx6mm
1PC New For SUN CBGA-LAN CBGALAN Valve
RULAND PCR12-2.5-2.5-A Coupling, 4 Beam Clamp, 5/32in.x 5/32in.

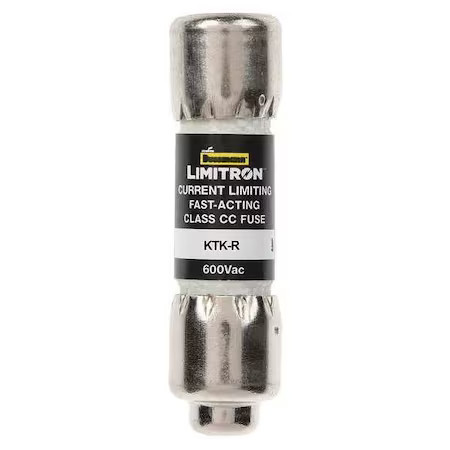

Eaton Bussmann Ktk-R-8 Cc Class, Fast-Acting, 8A, 600V Ac, Non-Indicating
