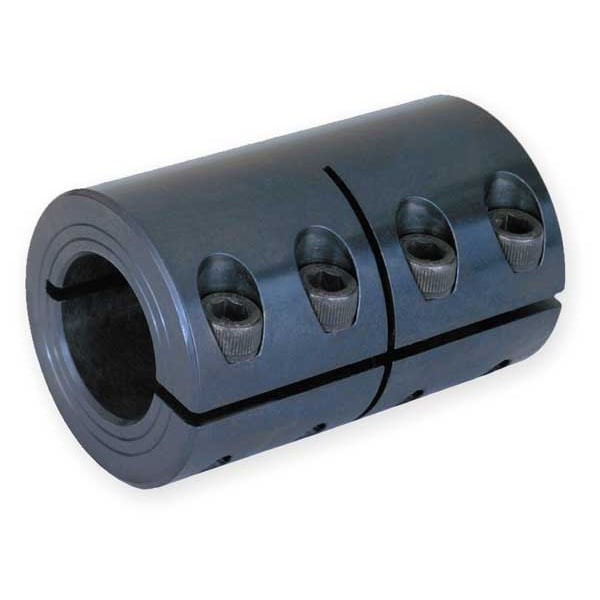

Ruland Clc-22-22-F Coupling, One Piece, Bore Dia 1 3/8 In
USD 137.99 USD
Specifications
| Brand | RULAND |
| Model | CLC-22-22-F |
| MPN | CLC-22-22-F |
| Style | Rigid Shaft Coupling |
| Item | Rigid Shaft Coupling |
| Overall Length | 3-5/8" |
| Type | Rigid Shaft Coupling |
| Overall Length (In.) | 3-5/8 |
| Weight | 1.7000 |
| Length | 7.600 |
| Width | 1.600 |
| Depth | 1.600 |
| Outside Dia. | 2-1/2" |
| Outside Dia. (In.) | 2-1/2 |
| Bore Dia. (In.) | 1-3/8 |
| Bore Dia. | 1-3/8" |
| Clearance Dia. (In.) | 2.772 |
| Screw Size (In.) | 5/16-24 |
| Machined From | Bar Stock |
| Max. Torque (In.-Lbs.) | 9600 |
| Keyway Width (In.) | 5/16 |
| UPC | 634529001783 |
A nice touch here is the Seamless 316 SS, which doesn't react with most acids.
