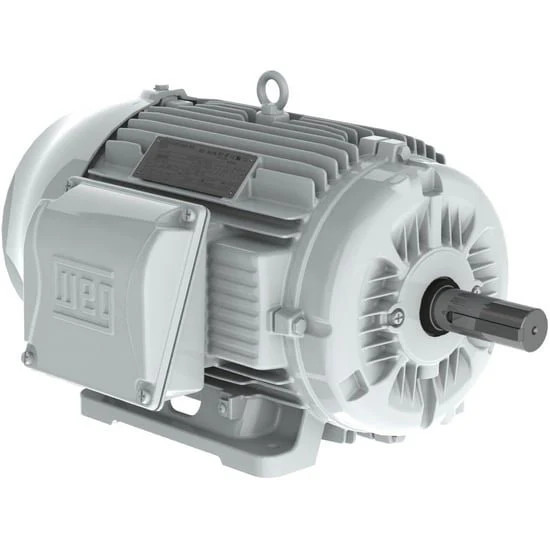

WEG 06012ES3EOW405T-W22 60HP 1145RPM 230/460V TEFC Oil Well Motor
USD 6976.32 USD
Specifications
| Brand | WEG |
| MPN | 06012ES3EOW405T-W22 |
| Motor Series | W22 |
| Duty Rating | Severe Duty |
| Horsepower | 60 HP |
| Power (kW) | 45.0 kW |
| Voltage | 230/460V AC |
| Usable At 208V | 160A, SF 1.00 |
| Frequency | 60 Hz |
| Nameplate RPM | 1,145 RPM |
| NEMA Frame | 405T |
| IP Rating | IP55 |
| Service Factor | 1.15 |
| Temperature Rise | 80 K |
| Ambient Temperature Rating | 40°C |
| Nominal Efficiency (NEMA) | 89.5% |
| Power Factor | 0.80 |
| Duty Cycle | Continuous (CONT) |
| Bearing Grease Type | Mobil Polyrex EM |
| Bearing Regreasing Interval | 12,000 hours |
| Altitude Rating | 1,000 m.a.s.l. |
| Motor Weight (Nameplate) | 1,204 lbs |
| Serial Number | 1057921676 |
| Manufacture Date | 28 January 2021 |
| Country Of Manufacture | Brazil |
| Winding Configuration (230V) | Delta (208–230V) |
| Winding Configuration (460V) | Wye (460V) |
A nice touch from AAIWA is the robust packaging for shipping.
Related Items
WEG 3 Phase Electric Fire Pump Motor 100 HP 3560 RPM Model 100360P3E365JPV 10276
SURPLUS NEW Caterpillar 227-4439 6.8mm Thick Cabin Window Glass – Parts
WEG Electric Corp .5018OT3E56-S General Purpose Motor 1/2 HP 56 Frame
Leeson 101648.00 Motor C4T17NC28 1/4 HP 208-230/460V 1725/1425
WEG MT-035 DC Permanent Magnet Motor 3/4hp 1750rpm 90V

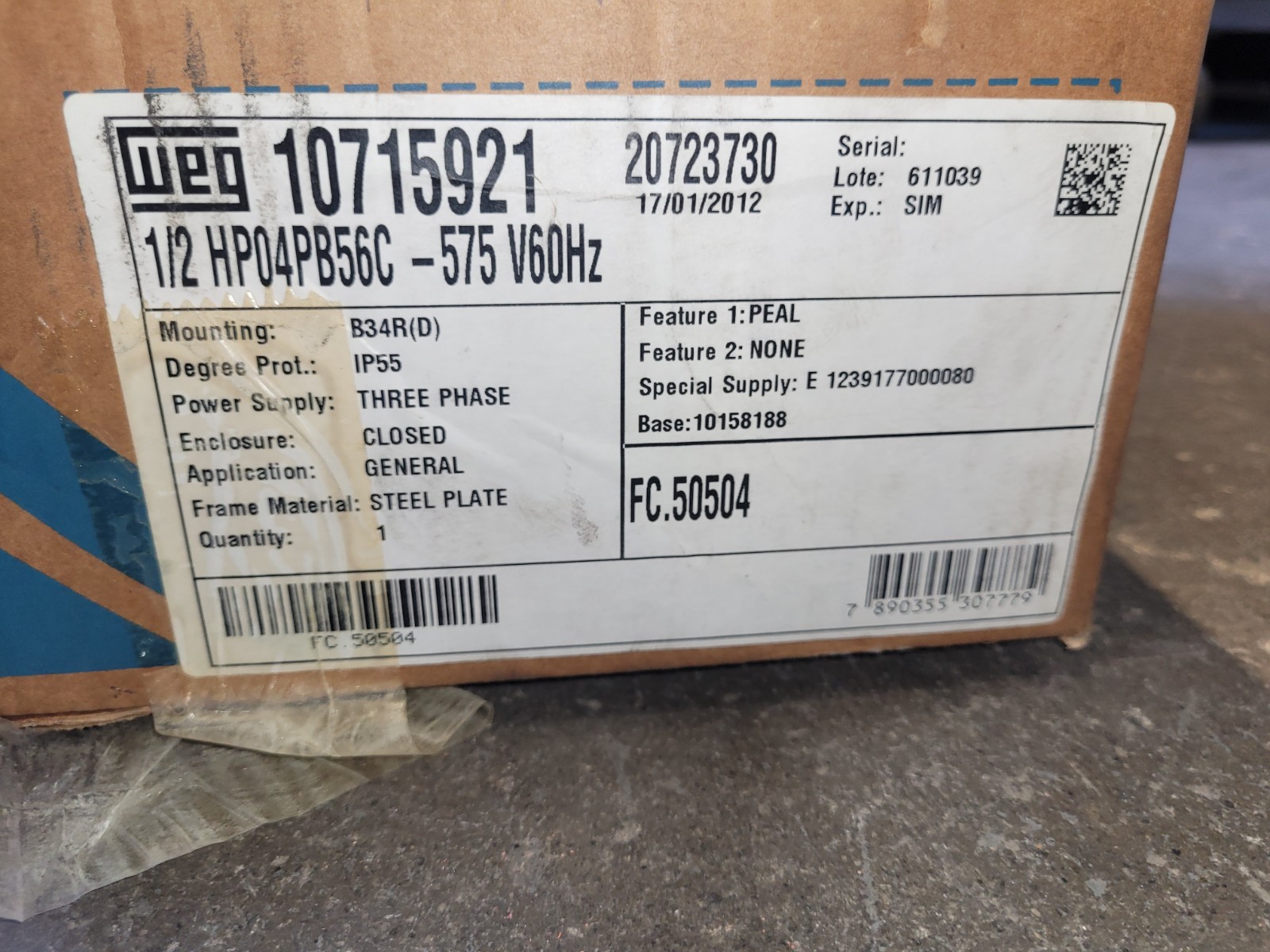

WEG Motor 10715921 1/2 HP04PB56C -575 V60Hz, Mounting B34R(D), 3 Phase
